Front and back crossing lifting and sliding parking system

Front and back crossing lifting and sliding parking system Featured Image
  • Front and back crossing lifting and sliding parking system
  • Front and back crossing lifting and sliding parking system
  • Front and back crossing lifting and sliding parking system
  • Front and back crossing lifting and sliding parking system

Short Description:


Product Detail

Product Tags

Product Video

Technical Parameter

Car Type

　

Car Size

 Max Length(mm)

5300
Max Width(mm)

1950
Height(mm)

1550/2050
Weight(kg)

≤2800
Lifting Speed

4.0-5.0m/min
Sliding Speed

7.0-8.0m/min
Driving Way

Motor&Chain/ Motor&Steel Rope
Operating Way

Button,IC card
Lifting Motor

2.2/3.7KW
Sliding Motor

0.2KW
Power

AC 50Hz 3-phase 380V

Features

The Front and back crossing lifting and sliding parking system features high degree of standardization,high efficiency of car parking and picking,low cost,short manufacturing and installing period.It has achieved the mode of front and back crossing, and simultaneous operation of front and back rows, and is also in a leading position in technology nationwide.It is equipped with various protective measures including anti-fall device,over-load protective device and anti-loosening rope/chain/The market share of it in the mechanical type parking equipment exceeds 85% due to its properties including safe and reliable performance,stable operation,low noise,low cost in maintenance and low requirement on the environment,and is preferred for real estate projects,old community reconstruction,administrations and enterprises.

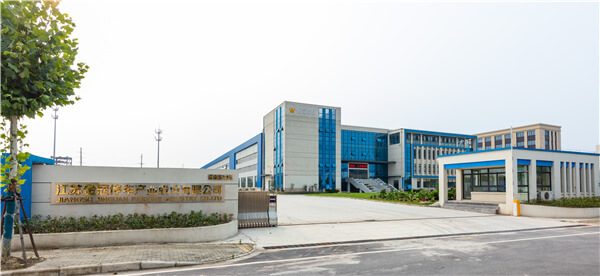

Company Introduction

Jinguan has more than 200 employees, nearly 20000 square meters of workshops and large-scale series of machining equipment, with a modern development system and a complete set of testing instruments.With more than 15 years history, the projects of our company have been widely spread in 66 cities in China and more than 10 countries such as USA, Thailand, Japan, New Zealand, South Korea, Russia and India. We have delivered 3000 car parking spaces for car parking projects, our products have been well received by customers.

Car Park System

Corporate Honors

mechanical parking garage

Certificate

pit puzzle parking

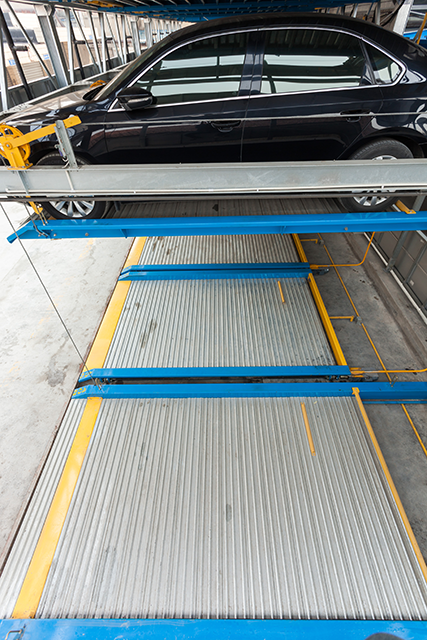

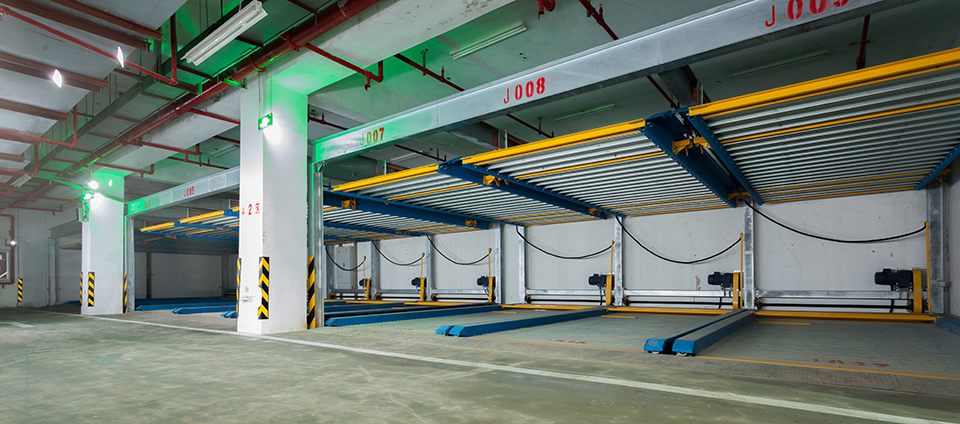

How it works

The parking equipment is designed with multi-levels and multi-rows and each level is designed with a space as an exchanging space. All spaces can be lifted automatically except the spaces in the first level and all the spaces can slide automatically except the spaces in the top level. When a car needs to park or release, all spaces under this car space will slide to the empty space and forms a lifting channel under this space. In this case, the space will go up and down freely. When it reaches the ground, the car will go out and in easily.

Service

Pre sale: Firstly, carry out professional design according to the equipment site drawings and specific requirements provided by the customer, provide quotation after confirming the scheme drawings, and sign the sales contract when both parties are satisfied with the quotation confirmation.

In sale: After receiving the preliminary deposit, provide the steel structure drawing, and start production after the customer confirms the drawing. During the whole production process, feedback the production progress to the customer in real time.

After sale: We provide the customer with detailed equipment installation drawings and technical instructions. If the customer needs, we can send the engineer to the site to assist in the installation work.

FAQ Guide:

Something else you need to know about Lifting and Sliding Parking

1. Where is your loading port?

We are located in Nantong city,Jiangsu province and we deliver the containers from Shanghai port.

2. Packaging & Shipping:

The big parts are packed on the steel or wood pallet and small parts are packed in wood box for sea shipment.

3. Does your product have warranty service? How long is the warranty period?

Yes,generally our warranty is 12 months from the date of commissioning at the project site against factory defects, no more than 18 months after shipment.

4. What are the main parts of the lift-sliding puzzle parking system?

The main parts are steel frame,car pallet,transmission system,electrical control system and safety device.

5. How to deal with the steel frame surface of the parking system?

The steel frame can be painted or galvanized based on customers' requests.

6. What is the operating way of the lift-sliding puzzle parking system?

Swipe the card,press the key or touch the screen.
