Automated Multi Level Parking Vertical Lift Parking System

Short Description:

Automated Multi Level Parking is the product with highest land utilization rate among all parking equipment.It adopts fully closed operation with computer comprehensive management,and features higher degree of intellctualization,fast parking and picking.It is safer and people-oriented to park and pick the car with the built-in car rotating platform.The product is mostly adopted in the CBD and flourishing business centers.

Send email to us

Product Detail

Product Tags

Product Video

Applicable Occasion

Vertical Lift Parking System is applicable to the highly prosperous urban central area or the gathering point for centralized parking of vehicles. It is not only used for parking, but also can form a landscape urban building.

Technical Parameter

Type parameters			Special note
Space Qty	Parking Height(mm)	Equipment Height(mm)	Name	Parameters and specifications
18	22830	23320	Drive mode	Motor&steel rope
20	24440	24930	Specification	L 5000mm
22	26050	26540		W 1850mm
24	27660	28150		H 1550mm
26	29270	29760		WT 2000kg
28	30880	31370	Lift	Power 22-37KW
30	32490	32980		Speed 60-110KW
32	34110	34590	Slide	Power 3KW
34	35710	36200		Speed 20-30KW
36	37320	37810	Rotating platform	Power 3KW
38	38930	39420		Speed 2-5RMP
40	40540	41030		VVVF&PLC
42	42150	42640	Operating mode	Press key,Swipe card
44	43760	44250	Power	220V/380V/50HZ
46	45370	45880		Access indicator
48	46980	47470		Emergency Light
50	48590	49080		In position detection
52	50200	50690		Over position detection
54	51810	52300		Emergency switch
56	53420	53910		Multiple detection sensors
58	55030	55520		Guiding device
60	56540	57130	Door	Automatic door

Factory Show

We have double span width and multiple cranes, which is convenient for cutting, shaping, welding, machining and hoisting of steel frame materials.The 6m wide large plate shears and benders are special equipment for plate machining. They can process various types and models of three-dimensional garage parts by themselves, which can effectively guarantee the large-scale production of products, improve the quality and shorten the processing cycle of customers. It also has a complete set of instruments, tooling and measuring instruments, which can meet the needs of product technology development, performance test, quality inspection and standardized production.

Certificate

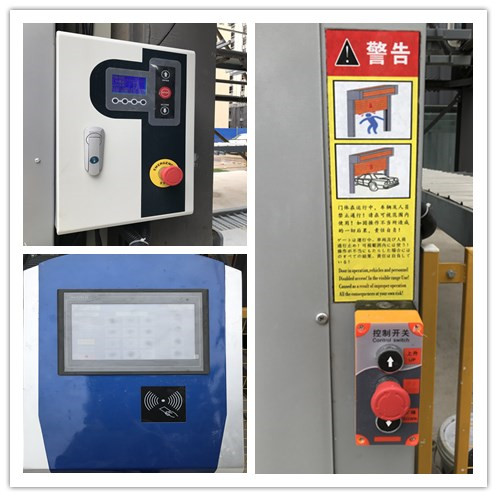

Electrical operating

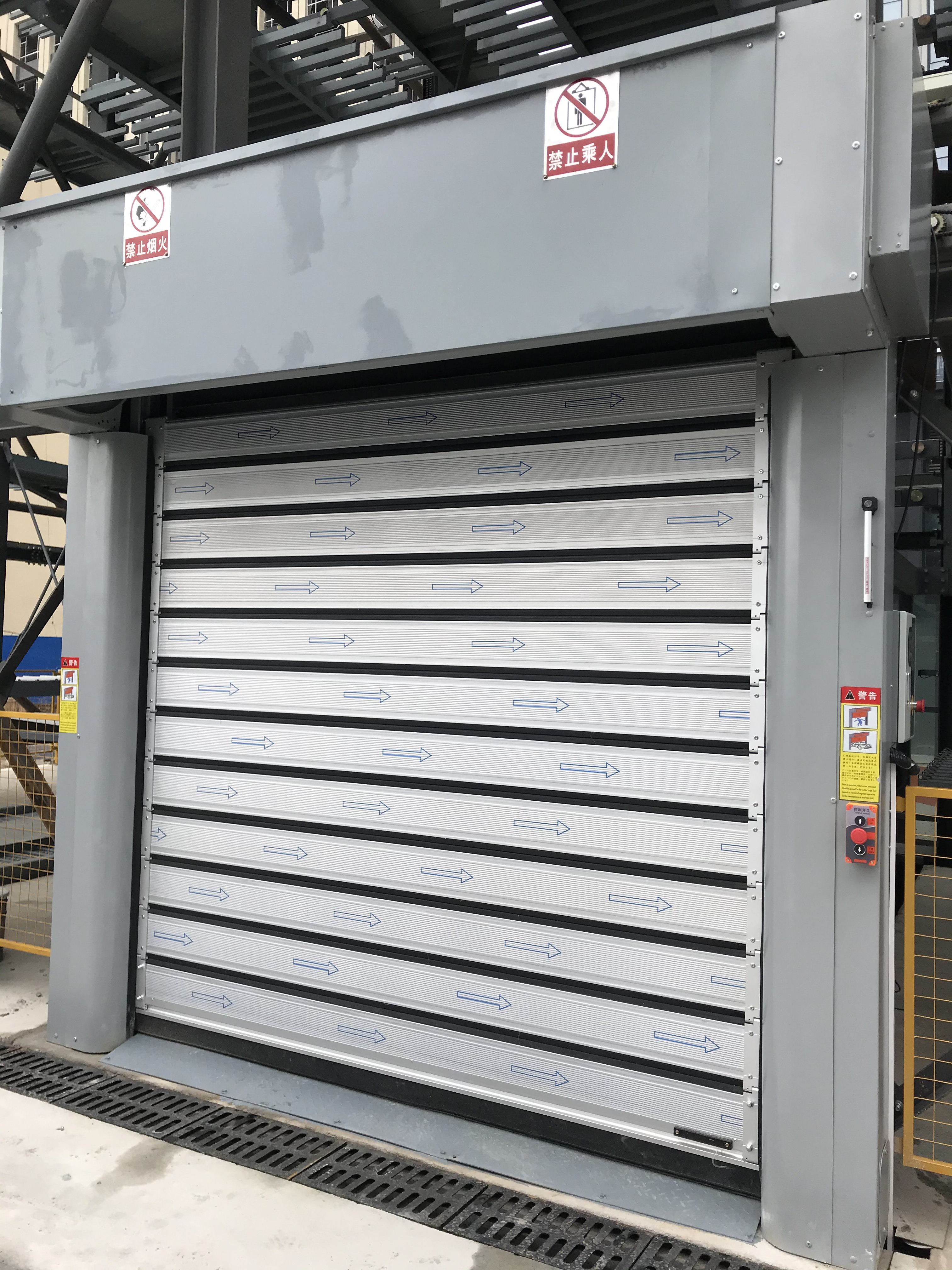

New gate

Equipment Decoration

The multi layer parking which are constructed at outdoor may achieve different design effects with different construction technique and decorative materials,it can harmonize with the surrounding environment and become the landmark building of the entire area.The decoration can be toughed glass with composite panel,reinforced concrete structure,toughed glass,toughed laminated glass with aluminum panel,color steel laminated board,rock wool laminated fireproof external wall and aluminum composite panel with wood.

FAQ

1. Packaging & Shipping:

The big parts are packed on the steel or wood pallet and small parts are packed in wood box for sea shipment.

2. What's your payment term?

Generally,we accept 30% downpayment and balance paid by TT before loading.It is negotiable.

3. Does your product have warranty service? How long is the warranty period?

Yes,generally our warranty is 12 months from the date of commissioning at the project site against factory defects, no more than 18 months after shipment.

4. Other company offer me a better price. Can you offer the same price?

We understand other companies will offer a cheaper price sometimes,But would you mind showing us the quotation lists they offer?We can tell you the differences between our products and services,and continue our negotiation about the price,we will always respect your choice no matter which side you choose.
